Length |
|
22.4 inches (568 mm) |
Front Track |
|
11.65 inches (296 mm) |
Rear Track |
|
11.65 inches (296 mm) |
Weight |
|
90.4 ounces (2.56 kg) |
Height (overall) |
|
8.43 inches (214 mm) |
Wheelbase |
|
13.2 inches (335 mm) |
Front Shock Length |
|
Long |
Rear Shock Length |
|
XXLong |
Front Tires |
|
Slash 2.2 (Pre-Glued with Inserts) |
Rear Tires |
|
Slash 2.2 (Pre-Glued with Inserts) |
Front Wheels |
|
2.2″ Satin or Chrome-Finish |
Rear Wheels |
|
2.2″ Satin or Chrome-Finish |
Speed Control Type |
|
VXL-3s™ Electronic Speed Control |
Motor (electric) |
|
Velineon® 3500 Brushless |
Gear Ratio (internal) |
|
2.72 (final drive: 10.2) |
Differential Type |
|
Steel Composite Planetary |
Gear Pitch |
|
48-Pitch |
Transmission |
|
Metal Gear Magnum 272™ |

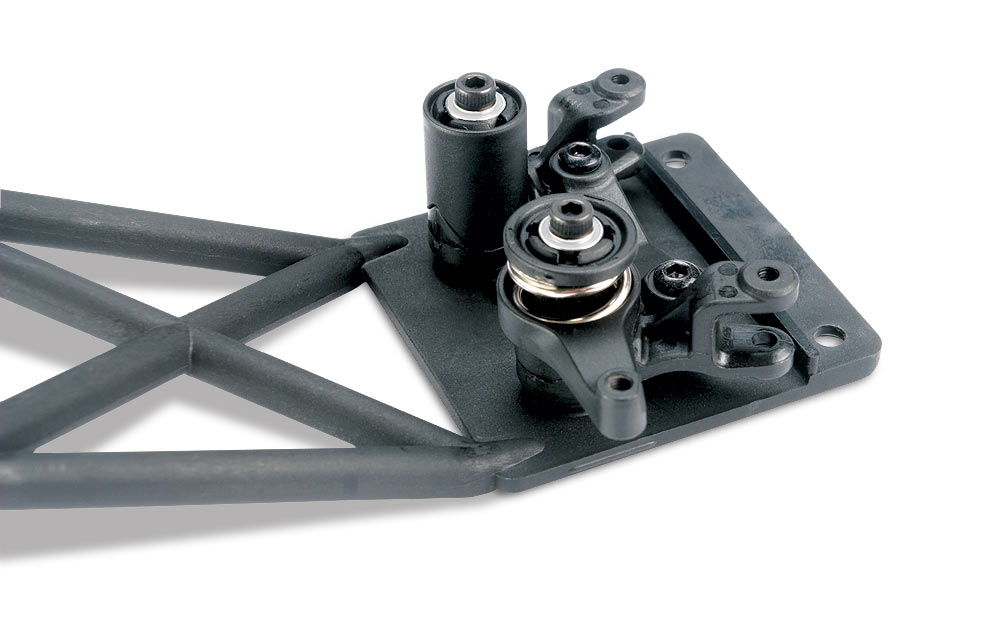

Steering |
|
Bellcrank |

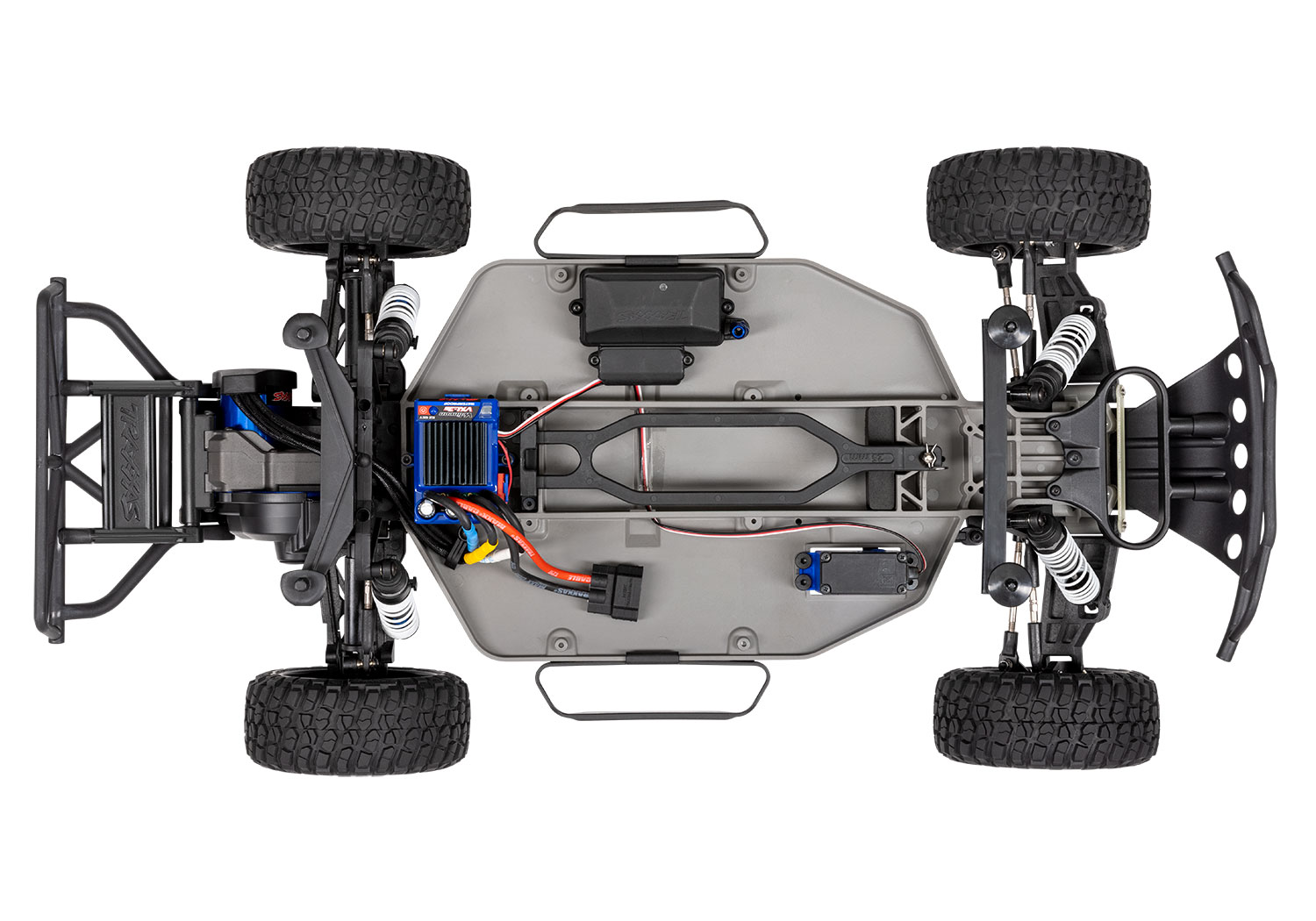

Chassis Type |
|
Long-wheelbase fiber-composite chassis |
Chassis Material |
|
Composite Nylon |
Center Ground Clearance |
|
3.5 inches (89 mm) |
Top Speed |
|
60+mph* |
Skill Level |
|
1 |
Radio System (transmitter) |
|
TQi™ 2.4 GHz (2-channel) |
Radio System (receiver) |
|
Traxxas Stability Management® (6533) |
Officially-Licensed Race Replicas |
|
Traxxas, Race Edition (Traxxas Blue) Traxxas, Race Edition (Traxxas Red) |
**Battery Tray Dimensions |
|
165 mm x 49.5 mm x 23 mm, 25 mm |
Required |
|
NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter) |
